EinScan HX 3D Scanner
In stock
The EinScan HX is a Hybrid Blue Laser & LED Light Source Handheld 3D Scanner.
Why EinScan HX?
- Perfect balance of precision, portability, flexibility & price
- Ideal for industrial applications and reverse engineering
- Blue Laser Mode is optimal for scanning dark, shiny or reflective surfaces
- LED Mode is perfect for full color scans without the use of targets/markers
- Fully portable & handheld scanner, complete with Pelican-style transport case
- Up to 40 micron accuracy (0.040mm)
- Up to 50 micron resolution (0.050mm)

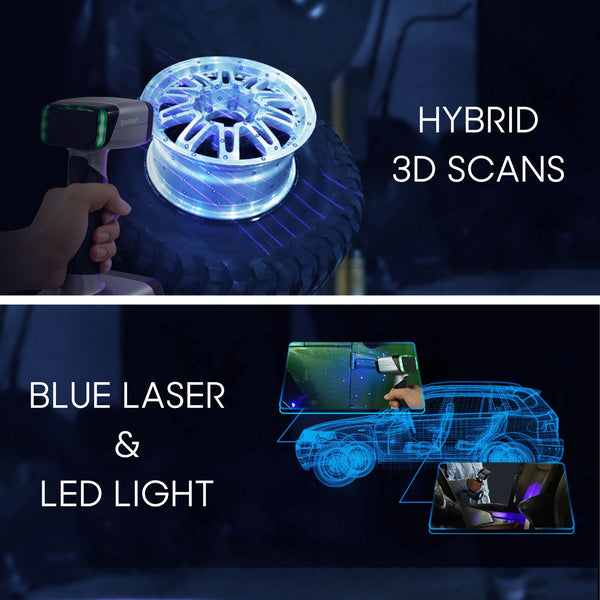

Dual Scan Modes
Innovatively integrated with dual blue LED light and blue laser, improves scanning materials adaptability with less limitation for a wider range of applications.
LED Mode
LED light scanning allows rapid 3D scanning in full color.
Blue Laser Mode
Laser scanning, which is less sensitive to ambient light, gives better performance to reflective and dark color surface.

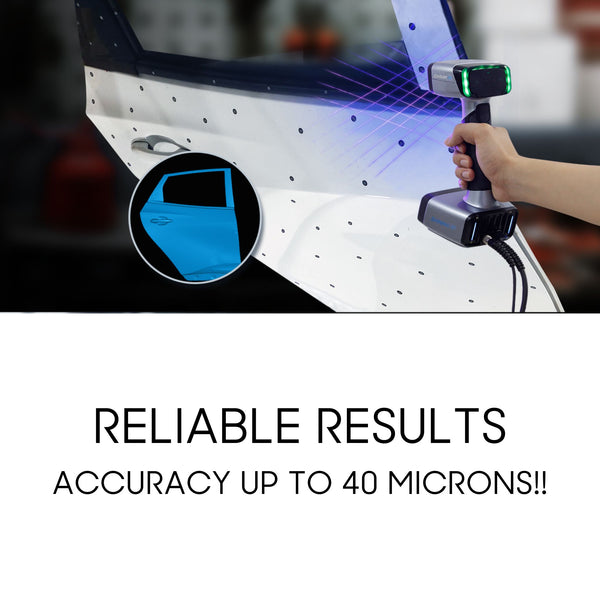

Incredible Accuracy & Precision
The high resolution and accuracy meet the needs of most industrial applications for reverse engineering and measuring.
- Minimum point distance 0.05 mm
- Accuracy up to 0.04 mm under Laser Scan mode
- Includes factory calibration and certificate
High Efficiency Scanning Speed
Processing speed of EinScan HX under Rapid Scan Mode is up to 1,200,000 points/s, and multiple blue laser lines under Laser Scan Mode makes scanning of most objects in minutes for reverse engineering, CAD/CAM, 3D printing and etc.

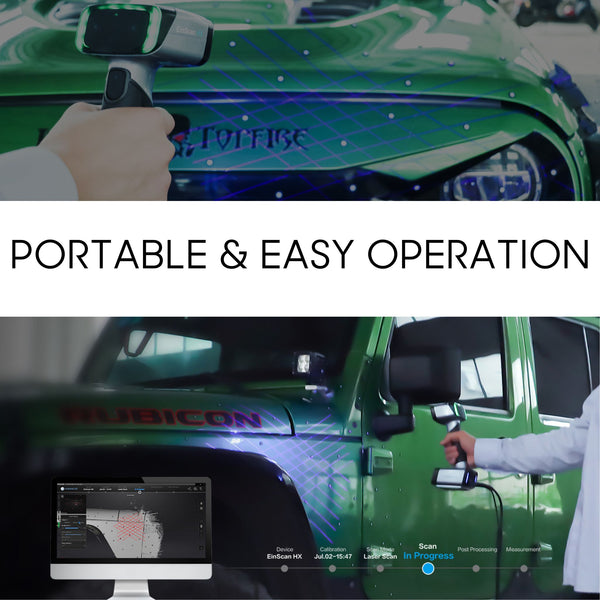

Portable & Easy to Use
The EinScan HX is plug and play with user friendly software, which is easy to operate, no matter you are newbie or with professional experience in 3D scanning. The portability and flexibility use of EinScan HX has been considered to its ergonomic design for a more efficient and comfortable scanning experience.
The EinScan HX has an ergonomic design and a weight of just 0.7kg (~1.5lbs), allowing for prolonged use without fatigue or discomfort.

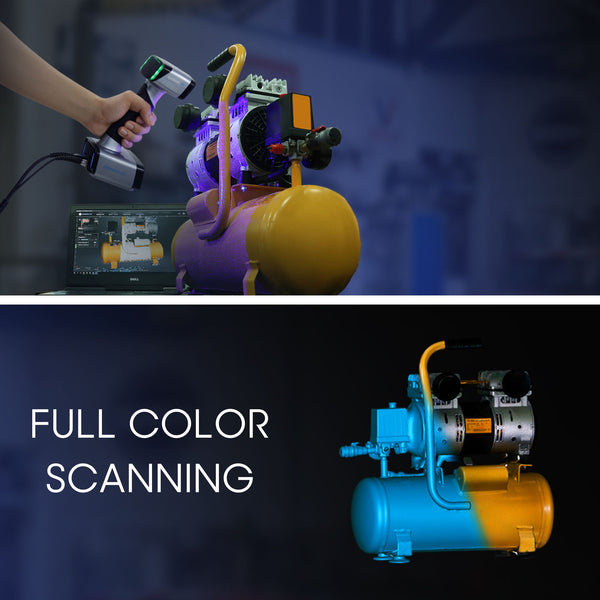

Full Color Built-In
With built-in color camera, the EinScan HX supports full color texture capturing and tracking by texture.
What's Included
The EinScan HX includes everything that you need to get started right out of the box!
- 1x EinScan HX 3D Scanner
- 1x Pelican-Style Hard Case
- 1x Calibration Board
- 1x Calibration Certificate
- 1x Set of Markers
- 1x ExScan Scan Acquisition Software USB drive
- 1x Solid Edge Shining3D Edition Software
- 1x 1yr Warranty backed by Shining3D & 3DChimera
Specs
| Scan Mode | LED Mode (Rapid Scan) | Laser Mode |
| Accuracy | Up to 50 microns (0.050mm) | Up to 40 microns (0.040mm) |
| Volumetric Accuracy | 0.05 + 0.1mm/m | 0.04 + 0.6mm/m |
| Scan Speed | 1.2M points/s | 480k points/s |
| Camera Frame Rate | 55 FPS | 55 FPS |
| Align Modes | Feature, Maker, Texture or Hybrid | Marker |
| Working Distance | 470mm | 470mm |
| Depth of Field | 200-700mm | 350-610mm |
| Max FOV | 420x440mm | 380x400mm |
| Point Distance | 0.25-3mm | 0.05-3mm |
| Light Source | Blue LED | 7 Blue Laser Crosses |
| Safety | Eye Safe | Class 1 (Eye-Safe) |
| Color Texture | Yes | No |

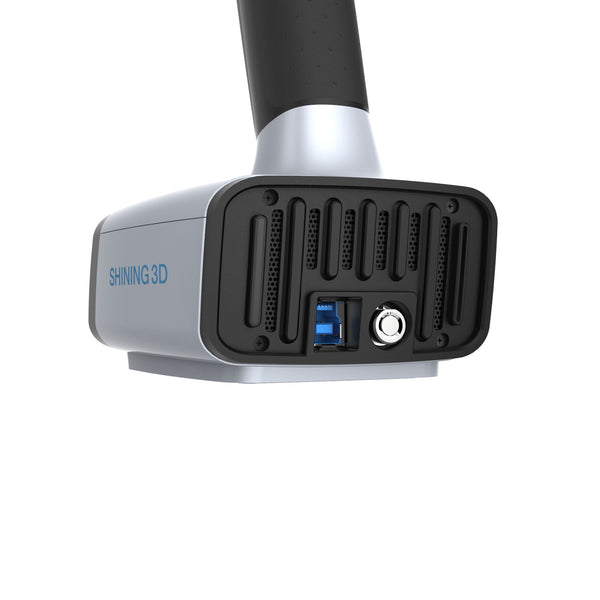

| Connection Standard | USB 3.0 |
| Output Formats | OBJ, STL, ASC, PLY, P3, 3MF |
| Dimensions | 108 x 110 x 237mm |
| Weight | 710g (0.7kg) |
| Operating Temperature Range | 0-40C |
| Operating Humidity Range | 10-90% |
| Certifications | CE, FCC, ROHS, WEEE, KC |
Comparison - EXModel vs EXModel Pro
| FEATURE | EXModel Pro | EX Model |
| Mesh Editing (Segmentation, Fill Holes & Smoothing) | ✓ | ✓ |
| Mesh Alignment (Coordinates/ N-points/ Fine Align) | ✓ | ✓ |
| Primitives Extraction/ Construct References | ✓ | ✓ |
| Cross Sections/ 2D Sketching/ 3D Sketching | ✓ | ✓ |
| Fit / Manual Free Form Modelling/ Auto Surfacing | ✓ | ✓ |
| Export Features/ Profile as IGES/STEP/DXF | ✓ | ✓ |
| Constraints/ Offset/ Patterns in 2D sketch | ✓ | ✓ |
| Helix/ Loft/ Sweep/ Fill Surface/ Blend surface/ Flatten | ✓ | |
| Extrude/ Revolved surfaces | ✓ | |
| Trim to Solid / Cut / Combine / Intersect / Fillet / Chamfer / Patterns | ✓ | |
| Hybrid Modelling (Free-Form & Parametric) | ✓ | |
| Transfer Design and Feature Tree to other Packages | ✓ |
New Release - HX2
The EinScan HX2 is an upgraded version of the popular HX scanner, now featuring additional laser lines for enhanced scanning precision and speed (26 lines instead of the original 14 lines), especially on complex and reflective surfaces. With the same portability and versatility as the original, the HX2 offers superior accuracy of up to 40 microns.
There is a SPECIAL PROMOTION which includes a free 1-year license for EXModel software ($495 value)!!
Ideal for industrial applications, this new model provides faster and more efficient 3D scanning, making it perfect for professionals looking to elevate their scanning capabilities.
Minimum Computer Requirements
| Operating System | Windows 10 |
| Graphics Card | NVIDIA GTX/RTX Series, GTX1080 minimum, >4GB memory |
| Processor | i7-8700 |
| RAM | >32GB |
| USB | USB A 3.0 |
Download Software, Brochures & Documents
| Einscan HX Brochure | Download Here |
| EinScan HX Quick Start Guide | Download Here |
| EinScan HX User Manual | Download Here |
| EinScan HX Software | Download Here |
