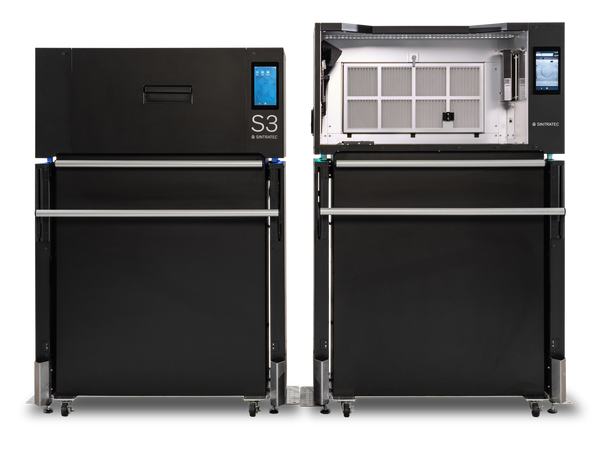

The Sintratec S3 is the latest addition to the Sintratec All-Material Platform.
Developed for around-the-clock SLS 3D printing, the S3 is a workhorse that packs a punch. Its 30-watt fiber laser fuses powder particles into precise, industrial-grade objects at unprecedented speeds.
The Sintratec Material Core Unit 220 is the new Build Module compatible with all Fusion Modules of the All-Material Platform. The build volume of 15.2 liters makes the MCU-220 the ideal choice for large objects and high-throughput manufacturing.
Once your print job is completed, simply move the MCU-220 into the dedicated Material Handling Station (MHS) for further processing. The freely accessible work area with an air filtration system gives you a clear view of the object while depowdering. Additionally, it allows you to easily collet, sieve and recycle the unused powder for your next print.
What's Included?
- 1x S3 Laser Sintering Station (LSS)
- 1x Material Core Unit (MCU-220)
- 1x Material Handling Station (MHS)
Features
- Powerful 30-watt fiber laser
- Three times faster laser speed than the S2
- 90% larger build volume than the S2
- Next-level productivity and throughput
- High level of process reliability
- Integrated re-coating & multi-zone heating
- High-resolution camera for real-time evaluation
- Integrated screening and mixing function
Specs
Material Core Unit 220 (MCU)
| Build Cylinder (Ø x h) |
220 x 400 mm *Effective printing range depends on the application & material. |
| Max Part Size. PA12 (Ø x h) |
200 x 340 mm 7.8 x 13.3 in |
| Max Part Size, PA12-GF (Ø x h) |
200 x 340 mm 7.8 x 13.3 in |
| Max Part Size, TPE (Ø x h) |
200 x 300 mm 7.8 x 11.8 in |
| Build Volume | Up to 15.2 L |
| Build Speed | Up to 2.4 cm/hr Up to 24 mm/hr Up to 0.94 in/hr |
| Z-Resolution | 0.1 mm 100 microns 0.0039 in |
| Accuracy |
+/- 0.5mm + 0.5% of part length *Tolerances may change depending on part geometry. |
| MCU Weight | Less than 100 kg Less than 200 lbs |
| MCU Size (h/w/d) | 1.1 x 0.85 x 0.53 m 43.3 x 33.46 x 20.87 in |
S3 Laser Sintering Station (LSS)
| Laser | Fiber, 30W @ 1064nm |
| Laser Spot Size | 0.145mm 145 microns 0.006in |
| Power | 230V, 11 A max 50 - 60 Hz |
| Laser Life | 10,000+ hrs |
| LSS Weight | Less than 100 kg Less than 200 lbs |
| LSS Size (h/w/d) | 1.5 x 1 x 0.6 m 59.1 x 39.4 x 23.6 in |
Material Handling Station (MHS)
| Power | 230 V 5 A max 50 - 60 Hx |
| Available Motorized Sieves | 140 μm 314 μm mesh size |
| Touchscreen | 7" 3280 x 2464 px |
| MHS Weight | Less than 100 kg Less than 200 lbs |
| MHS Size (h/w/d) | 1.57 x 1 x 0.6 m 61.81 x 39.37 x 23.62 in |
