X1E - For Professionals & Engineering Applications
Designed specifically for the needs of professional customers, the X1E builds upon the award-winning X1 series platform with technical features for demanding industrial applications, including:
- Enhanced Network Control (w/ Kill Switch & Physical Removal)
- Actively Heated Chamber (max 60C)
- Higher Temperature Hotend (max 320C)
- Improved Filtration System
Features
Advanced Network Security Solutions, Protecting Your Business Integrity
The X1E provides WPA2-Enterprise Wi-Fi Authentication (EAP-PEAP/EAP-TLS/TAP-TTLS) and individual physical kill switches for both Wi-Fi and Ethernet (newly added), meeting stringent network security requirements.
Off-Cloud Operation Fully Functional With LAN Only Mode
The X1E can operate independently without a connection to Bambu Cloud Service, fully functional within your local network. Customers can remotely control the X1E through LAN communication without requiring an Internet connection.
320°C /608°F Nozzle Temperature, Unlocking Greater Heat for High-Temperature Materials
Higher nozzle temperature makes it possible to print higher performance materials with improved dimensional stability, heat resistance and mechanical performance, such as PPA-CF/GF PPS and PPS-CF.
Active Heating And Controlled Chamber Temp; Reduce Warping, Improve Layer Bonding
The X1E can actively heat and regulate the chamber temperature. Accurately controlled chamber temperature (up to 60°C or 140°F) improves print quality, especially for filaments prone to warping such as ABS and PC.
Heavy Duty Air Filtration; Effectively Filter Particulates And VOCs Generated by 3D Printing
We combined a G3 pre-filter, an H12 HEPA filter, and a high-quality coconut shell activated carbon filter to provide optimal air filtration. Enhanced filtration can effectively reduce excessive odors and particulates when printing in less ventilated environments.
Robust High Speed Core XY; Super Fast And Rigid Structure For Continuous High Speed Printing
The superior carbon-fiber rods in the Core XY motion structure enable the X1E to achieve a toolhead acceleration of 20,000 mm/s² by reducing the weight of moving parts. This faster acceleration allows the X1E to maintain its maximum travel speed of 500 mm/s for longer periods, significantly reducing overall print time.
Vibration And Extrusion Compensation; Stable & Quality Prints Even At Higher Speeds
X1E can actively compensate for XY-axis vibrations and extrusion issues to ensure exceptionally smooth print quality. All measurements are fully automatic, eliminating the need for manual adjustments.
AI Failure Detection; Reduce Filament Wastage And Machine Downtime
The X1E's AI algorithm can detect first-layer imperfections and spaghetti failures with the assistance of Lidar and computer vision. It then automatically pauses the print to prevent catastrophic failures.
Intelligent Filament Management
Supports Auto Filament Reload and Enables Multi-Material Printing with Support Material for Improved Surface Quality. X1E can parallel connect 4 Bambu AMS systems to print with up to 16 spools of filaments, good for printing dedicated support materials for seamless surface and printing multi-color. The AMS system also supports automatic filaments reload, to used up all filament on one spool before switching to the next.
Specs
| Hotend | All Metal w/ Hardened Steel Nozzle (0.4mm) and Gears |
| Hotend Temp (Max) | 320°C 608°F |
| Max Toolhead Speed | 500mm/s |
| Max Toolhead Acceleration | 20 m/s^2 |
| Heated Bed Type | Flexible Steel Plate w/ Smooth PEI Plate |
| Heated Bed Temp (max) | 120°C 248°F |
| Heated Chamber Temp (max) | 60°C 140°F |
| Build Volume | 256mm × 256mm × 256mm 10" x 10" x 10" |
| Sensors | Micro Lidar, Chamber Camera, Door Sensor, Filament Out, Power Loss Recovery |
| Materials | Open-Material Configuration, including PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, Carbon/Glass Fiber Reinforced Materials, PPA-CF/GF, PPS, PPS-CF/GF |
| Air Purification | G3 Pre-filter, H12 HEPA Filter, Coconut Shell Activated Carbon Filter |
| Display | 5in, 1280x720 Touch Screen |
| Controller | Dual Core Cortex M4 Motion, Quad ARM A7 1.2GHz Application, 2 Tops Neural Network Processing |
| Storage | 4GB + MicroSD Reader |
| Network | Wifi (802.1 b/g/n) & Ethernet (RJ45, 100 Mbs / Full Duplex) |
| Network Disable | Kill switch for Wifi & Ethernet; Network Module Removable |
| Voltage | 11-240 VAC, 50/60Hz |
| Power | 750W |
| Weight | 16kg |
| Overall Dimensions | 389 x 389 x 457mm |
Testimonials
"BTW, update on our printer. Holy crap, for prototyping this thing is an animal. We have been printing multiple parts for weeks now with some tight tolerances and it’s been able keep up and get us extremely accurate prints sometimes down to the last 0.001” without us even accounting for the correction factor of the expansion/contraction of the material as it prints. And all on default settings. Its also so fast some engineers are having a hard time keeping up with rapid design iterations, so I tell them to print several variations at once if the space allows. So thank you again for helping me get this thing in here for us, much appreciated." - Sr. Engineer, Medical Device Company

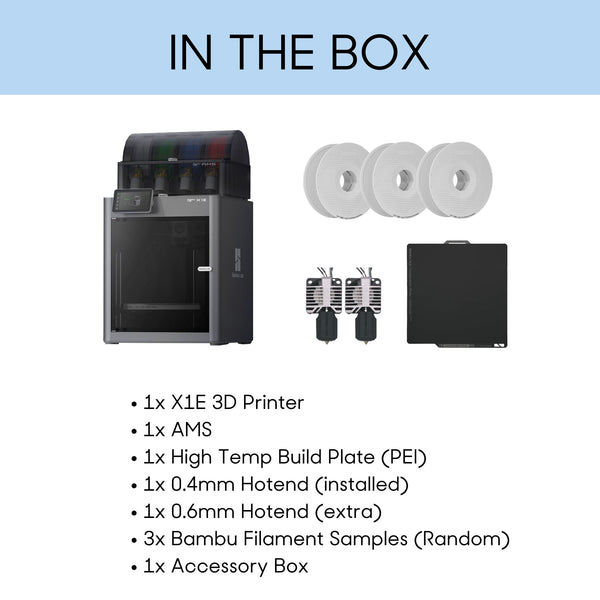

What's Included:
The X1E Standard Package is $2499 and includes the following items in the box:
- 1x X1E 3D Printer
- 1x AMS
- 1x High Temp Build Plate (PEI)
- 1x 0.4mm Hotend (installed)
- 1x 0.6mm Hotend (extra)
- 3x Bambu Filament Samples (Random)
- 1x Accessory Box
Bundles
| BUNDLE | WHATS INCLUDED: | SAVINGS |
| Starter |
|
$380 SAVINGS!! |
| Education |
|
$405 SAVINGS!! |
| Engineering |
|
$440 SAVINGS!! |
